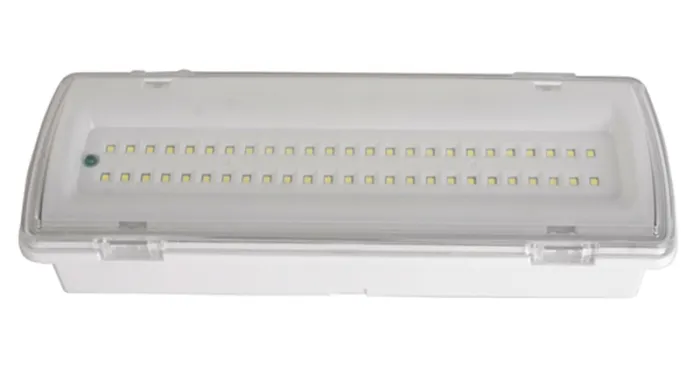

LE507L-50 LED Emergency Bulkhead (50 SMD2835 LEDs)
Bulkhead Emergency Light
LE507L-50 LED Emergency Bulkhead (50 SMD2835 LEDs)
Bulkhead Emergency Light
Request a Quote
- Slim LED emergency bulkhead designed for installations where space is limited and a discreet profile is preferred.
- It uses an ABS base and a clear polycarbonate diffuser that help protect the fixture and maintain even light distribution.
- Fitted with 50 SMD2835 LEDs, it produces up to 400 lumens of output for reliable illumination.
- Runs in DC mode with 4W power consumption and 9.5V output voltage.
- Includes two 3.7V 1.5Ah lithium batteries that supply up to 3 hours of emergency lighting when power is lost.
- The charging circuit supports a maximum current of 110mA, while the discharge current reaches 500mA.
- A full recharge cycle takes around 24 hours.
- The front cover can display adhesive labels to mark exits or indicate escape routes clearly.
- IP65 rating ensures the unit can be installed in damp or dusty areas without compromising performance.
- Optional embedded box available for recessed installation.
- A decorative ceiling cover is also available, providing a more refined appearance for ceiling-mounted installations.
- Optional acrylic directional signs can be selected to serve as clear and effective safety indicators.
