ELS136 Emergency Inverter (T8 1X36W)
Emergency Lignting
ELS136 Emergency Inverter (T8 1X36W)
Emergency Lignting

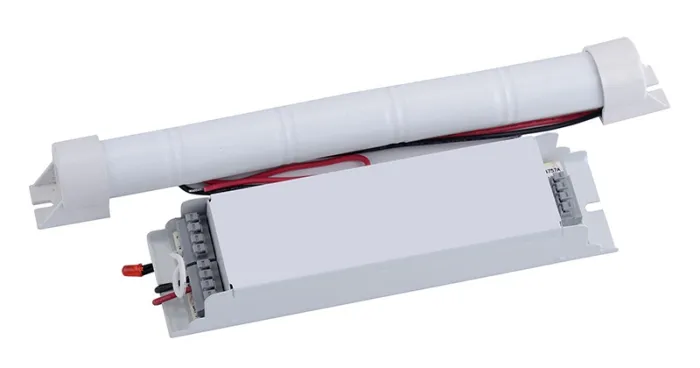

The emergency inverter enables a single lighting fixture to operate in both standard and emergency modes. When utility power is interrupted, the ELS automatically switches to emergency mode, ensuring continued illumination of the fluorescent lamp for at least one hour. The ballast integrates both charger and inverter circuits within a single housing, with the battery packaged separately. The ELS inverter can be installed within the wiring channel or on top of the luminaire.
Features
- Suitable for T8 1×36W fluorescent lamps
- Durable powder-coated steel housing designed for fluorescent emergency operation
- Integrates Ni-Cd battery, charger, and inverter circuits in one unit
- Complies with NEC and life safety code requirements
- Cold-start capable, compatible with designated lamp types
- Equipped with LED charge indicator and test button
- Input voltage: 110V–240V; emergency operation: 60 to 180 minutes
- Certified to IEC60598-2-22 standard
Technical Specifications
- Operating mode: AC/DC mode
- Input voltage: 110V–240V, 50/60Hz
- Battery type: 6V nickel-cadmium battery
- Compatible lamp: T8 36W (4-pin) fluorescent tube (consult supplier for compatibility)
- Operating temperature: 0℃ to 50℃
- Charging method: Transformer-based charging
- Charging time: ≤24 hours
- Emergency runtime options: 1 hour / 3 hours
- Protection features: Low-voltage cutoff to prevent battery over-discharge
