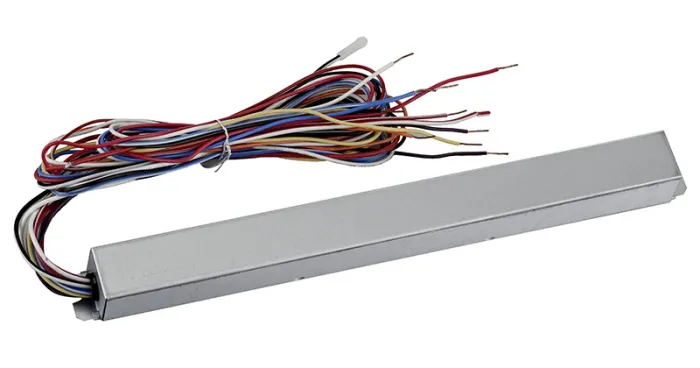

JTEB1300 Emergency Ballast
Emergency Lignting
JTEB1300 Emergency Ballast
Emergency Lignting
The emergency ballasts are designed to allow a single lighting fixture to function in both normal and emergency modes. During a power outage, the emergency lighting automatically switches to emergency operation, providing backup power for at least 90 minutes to support fluorescent or PLC lamps. The unit integrates the battery, charger, and inverter into one compact housing. It can be installed within the fixture’s wiring channel or on top of the fixture and is UL and cUL certified.
Features
- Durable powder-coated steel housing, suitable for fluorescent emergency lighting applications
- Integrated nickel-cadmium battery, charger, and inverter circuitry
- UL certified and compliant with NEC and Life Safety Code emergency lighting standards
- Cold-start capable and compatible with specified lamp types
- Equipped with an LED charging indicator and test switch
- Dual voltage input: 120/277VAC with ≥90 minutes emergency runtime
Technical Specifications
- Operation mode: AC/DC
- Input voltage: 120/277VAC, 60Hz
- Battery: 8.4V 2500mAh nickel-cadmium battery
- Compatible lamps: T8: 17W–40W; T12: 20W, 25W, 34W, 40W; T5: 14W, 21W, 28W; T5HO: 39W, 54W; CFL (4-pin): 18W, 24W, 36W, 40W, 50W (Please consult your supplier for compatibility confirmation)
- Operating temperature: 0℃ to 50℃
- Charger: High-reliability solid-state electronic charger with smart trickle charging system
- Indicator light: Red LED charge indicator
- Emergency duration: ≥90 minutes
- Certifications: UL&cUL, CEC, DOE, FCC
- Protection function: Low-voltage cut-off to prevent battery over-discharge
