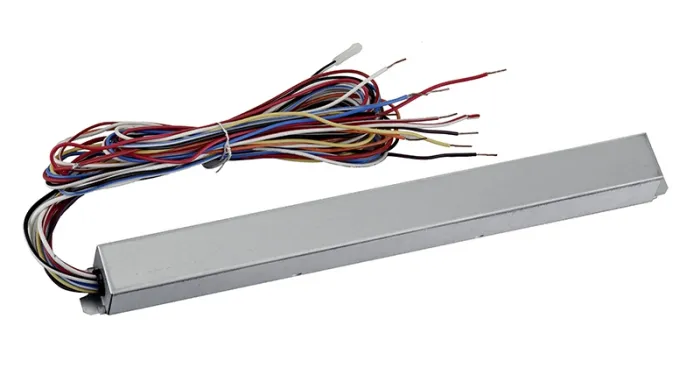

JTEB500 Emergency Ballast
Emergency Lignting
The emergency ballasts are designed to operate the same lighting fixture during both normal and emergency conditions. In the event of a power outage, the emergency backup lighting automatically switches to emergency mode, providing at least 90 minutes of backup illumination. The unit integrates the battery, charger, and inverter into a single compact enclosure. It can be mounted within a wire channel or on top of the fixture and is UL and cUL certified.
Features
- Durable powder-coated steel housing, suitable for fluorescent emergency lighting applications
- Integrated nickel-cadmium battery, charger, and inverter circuitry
- UL certified and compliant with NEC and Life Safety Code emergency lighting requirements
- Supports cold-start capability, compatible with specified lamp types
- Equipped with LED charging indicator and test switch
- Dual voltage input: 120/277VAC, with ≥90 minutes emergency operation
Technical Specifications
- Operation mode: AC/DC
- Input voltage: 120/277VAC 60Hz
- Battery: 3.6V 2500mAh nickel-cadmium battery
Compatible lamp types: 1×21W, 28W T5 or 32W T8 fluorescent tubes
(Please consult your supplier for compatibility confirmation) - Operating temperature: 0℃ to 50℃
- Charger: Solid-state electronic charging system with trickle charge functionality
- Indicator: Red LED charging indicator
- Emergency duration: ≥90 minutes
- Certifications: UL&cUL, CEC, DOE, FCC
- Protection: Low-voltage cut-off to prevent battery over-discharge
